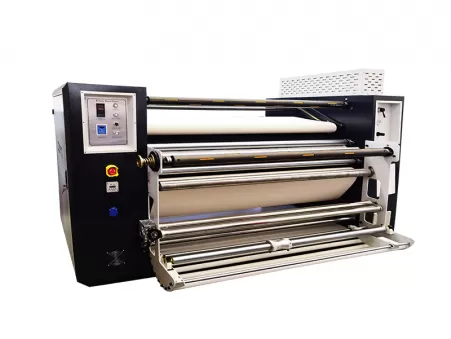

RTR-H series used for materials in roll only:
1. Transfer Printing
2. Direct Inks Reactivation
3. Lamination
The characteristics of heating system:
1. 100% full oil drum: Surface heat treatment, non-Teflon coating.
2. The cylinder is heated by heating elements and hydrotreated mineral oil, with an extra oil tank to hold thermally expanding heating oil.
3. Blanket coverage at 80%.
4. Overheated alarm system(+10℃).
5. Controllable heating power output, 1~100%.
6. Carbon brush slip ring: ease of maintenance.
7. Precise temperature control.
8. The rated power of each model:
Pneumatic tension & pressure control:
1. The rollers for unwinding or rewinding: 3-inch steel roller for roll fabric unwinding and 5 air expansion shafts for others.
2. Tension control for fabric:
Entry: 3-inch steel roller for roll fabric loading and manual biaxial tension bar control.
Exit: Air expansion shaft with disk brake with pneumatic adjustment.
Motor for rewinding, adjustable by speed controller.
3. Tension control for printing paper:
Entry: Air expansion shaft with disk brake with pneumatic adjustment.
Exit: Air expansion shaft with disk brake with pneumatic adjustment.
Motor for rewinding, adjustable by speed controller.
4. Tension control for protective paper:
Entry: Air expansion shaft with disk brake with pneumatic adjustment.
And manual biaxial tension bar control.
Exit: Air expansion shaft with disk brake with pneumatic adjustment.
Motor for rewinding, adjustable by speed controller.
5. NOMEX blanket with individual pneumatic tension control piston on both sides.
6. Pneumatic transfer pressure system provides more creativity for printing results.
Manual adjuster bolts on both sides for the felt tension rebalance.
Other features apply on RTR-H series machine:
1. All the electrical components of good manufactures.
2. Blanket off tracking alarm system.
3. Touch-screen for operating parameters viewing and programming.
4. Blanket auto centering system, PLC control and parameters adjustable on touch screen.
5. Auto power on & off that control by PLC program and one key auto cooling and power off features.
6. Available for both roll and pieces materials printing.
7. The diameter of the roll printing materials can be 20~30cm.
8. Independent motor for conveyor belt, and the speed of it is synchronized with working speed and adjustable.
9. Valid for 30 gsm printing paper.
10. The machine runs at full power during the heating up procedure, it takes about 60 minutes. Then power consumption will stay at 70~80% during production.
11. Oiler for oil drum load bearings lubrication.
Compressed air pressure: 0.8Mpa maximum.
Felt tension at 0.3Mpa maximum.
HS CODE: 8443.3990.00
