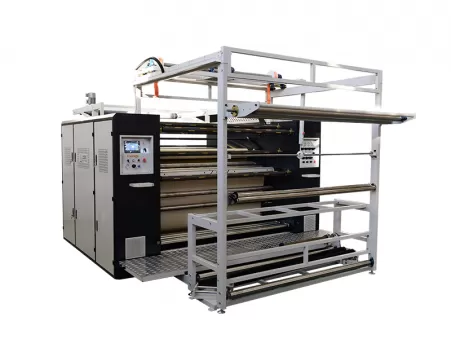

SOT series used for materials in roll & piece:
1. Transfer Printing
2. Direct Inks Reactivation
3. Lamination
The characteristics of heating system:
1. Single-layer oil drum, 50% full oil: Teflon coating surface.
2. The cylinder is heated by heating elements and hydrotreated mineral oil.
3. Blanket coverage at 70%.
4. Overheated alarm on temperature controller(+10℃).
5. Solid state relay for heating control.
6. Carbon brush slip ring: ease of maintenance.
7. Precise temperature control.
8. The rated power of each model:
Manual & Pneumatic tension & pressure control:
1. The rollers for unwinding or rewinding: One inch steel roller for roll fabric unwinding and 5 steel rollers for others with 3-inch core adapter for roll materials holding.
2. Tension control for fabric:
Entry: One inch steel roller for roll fabric loading and manual biaxial tension bar control.
Exit: Steel roller with disk brake with manual adjustment.
The rewinding speed is synchronized with the oil drum driving motor.
3. Tension control for printing paper:
Entry: Three-inch steel roller with disk brake with manual adjustment, and manual biaxial tension bar control.
Exit: Steel roller with disk brake with manual adjustment.
The rewinding speed is synchronized with the oil drum driving motor.
4. Tension control for protective paper:
Entry: Three-inch steel roller with disk brake with manual adjustment, and manual biaxial tension bar control.
Exit: Steel roller with disk brake with manual adjustment.
The rewinding speed is synchronized with the oil drum driving motor.
5. NOMEX blanket with pneumatic tension control piston on both sides. (SOT-44/44H)
6. Adjustor bolt on both sides for felt tension rebalance. (SOT-64/64H)
Other features that apply on SOT series machine:
1. Easy button-operated control panel.
2. Blanket auto centering system: # Apply on SOT-44H and SOT-64H
Omron timer & limit switch control and parameters adjustable on timer.
3. Auto power off: One-key automatic shutdown
Controlled by timer, auto cooling off and power auto off.
4. With working table in depth of 1m, multi-functional for materials in roll and pieces.
5. 3 unwinding and 3 rewinding shafts.
6. The diameter of the roll materials can be 20cm.
7. Pneumatic felt tension. #SOT-44/44H.
8. Valid for 30 gsm printing paper.
9. The machine runs at full power during the heating up procedure, it takes about 40 minutes. Then power consumption will stay at 70~80% during production.
10. Oiler for oil drum ends bearing lubrication.
Compressed air pressure: 0.6Mpa maximum.
Felt tension at 0.2Mpa maximum.
HS CODE: 8443.3990.00
